Looping page elements

Container looping lets you dynamically render page elements multiple times based on a formula input. When enabled, Tines will repeat the container's elements according to the formula's output - whether that's a static number, an array, or dynamic upstream data.

Enabling looping on a container

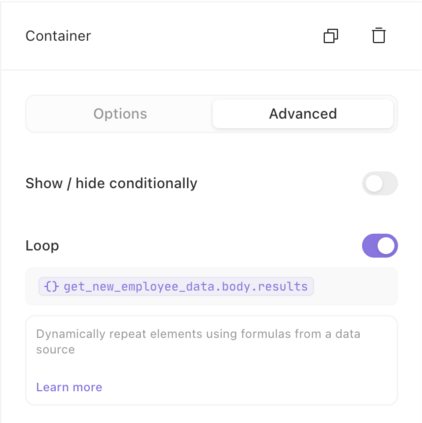

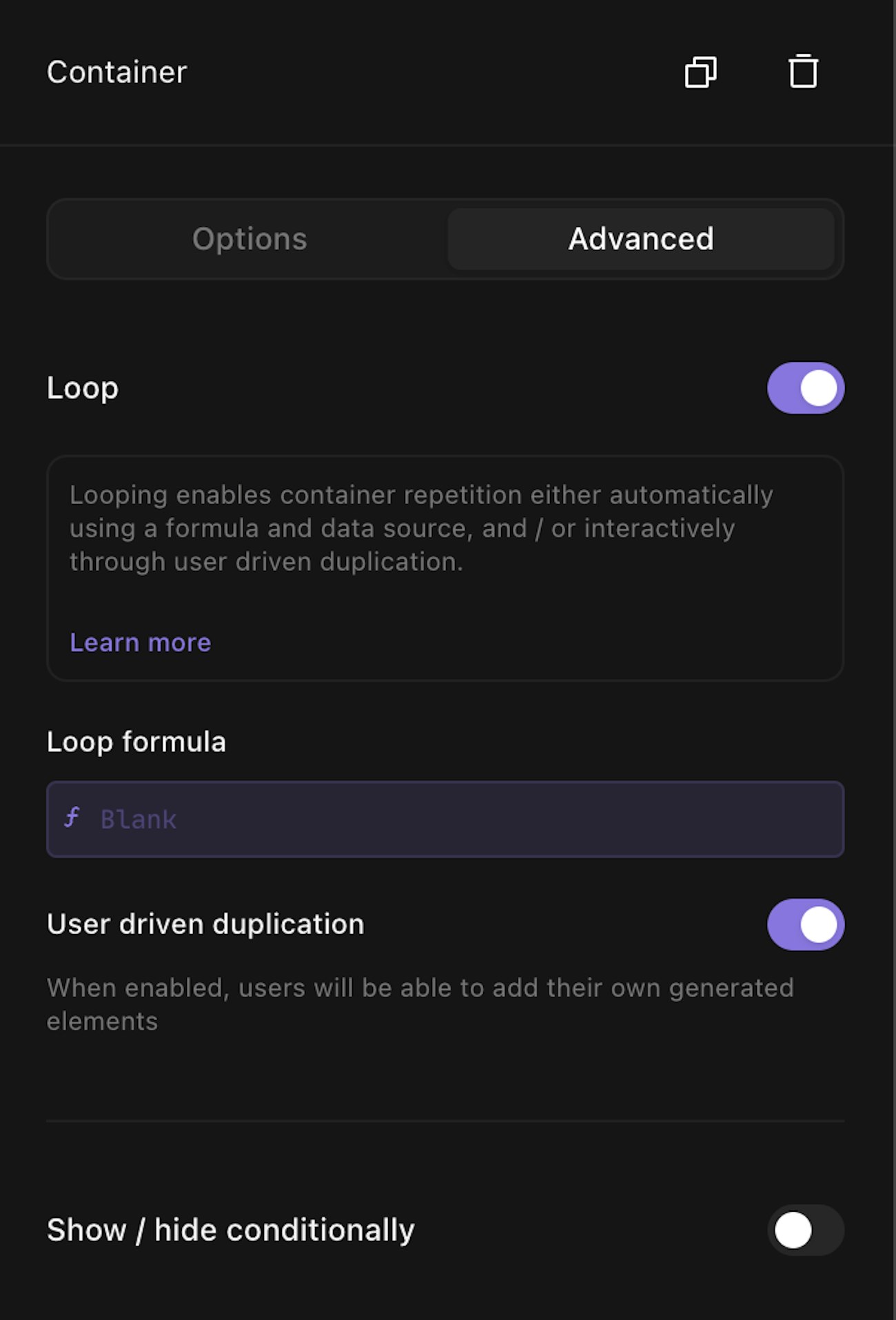

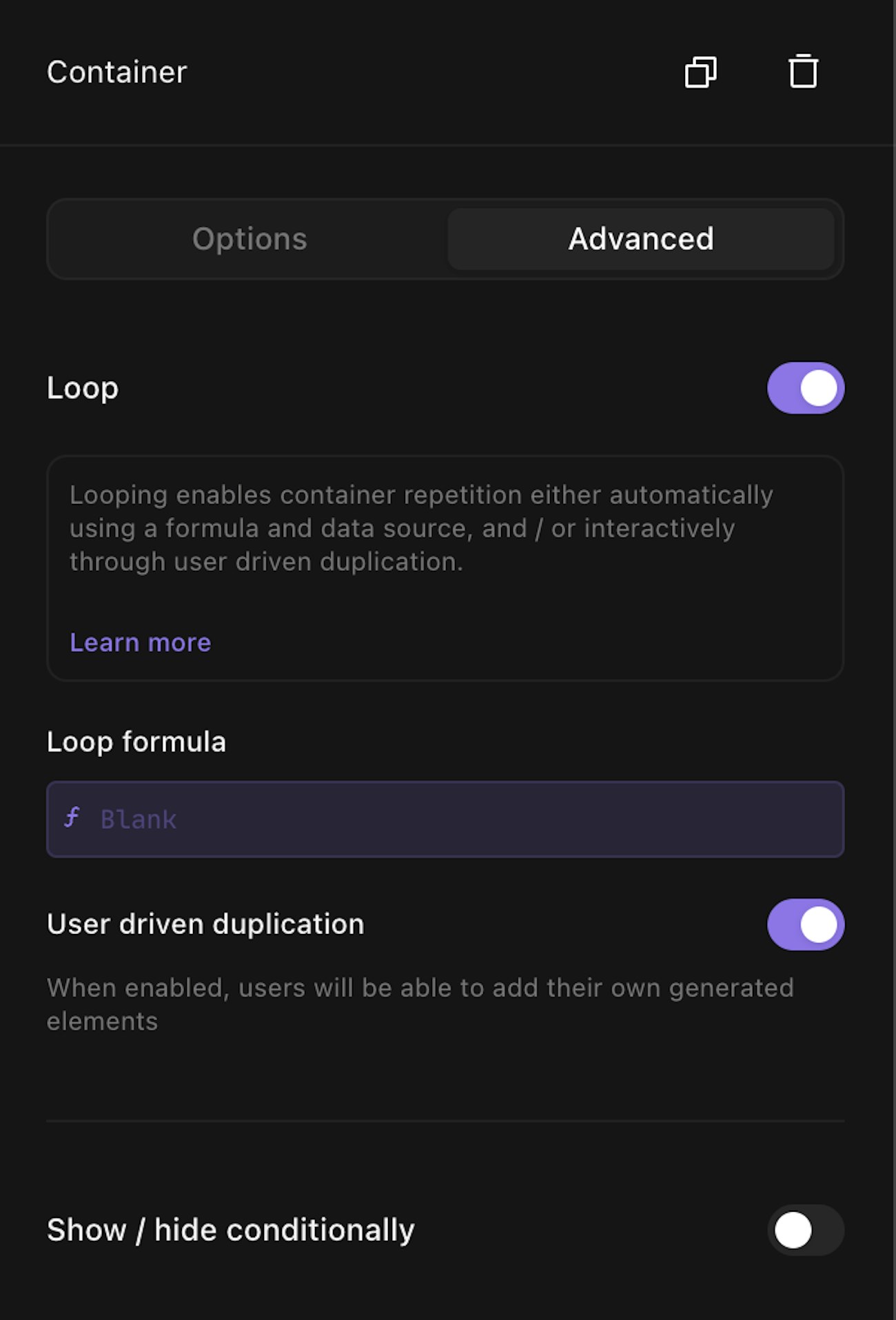

To enable looping on a container, navigate to the container on the page you want to add looping for. Under Advanced on the right-hand panel there is a Loop switch. Enabling this switch allows you to enter into a formula input.

Formula input options

Your loop formula can be:

  • A static number (e.g., 3) - renders elements that many times

  • An array (e.g., ARRAY("hello", "world")) - renders once per array element

  • An array of objects or referenced upstream data (e.g., event_transform_action.data)

Naming looping containers

Tines heavily recommends naming your container to something descriptive! This will help you identify in the event output for looping containers which container's values to look for. The default name for containers is simply "Container". More info on this is in the Accessing the looped data section.

Accessing looping data in elements

You can access elements within looping containers using formula inputs with the META.page_elements_loop object.
This can be useful when defining element names, default values, and rich-text content.


When typing META.page_elements_loop you have the following two input options:

  1. index - Supplying META.page_elements_loop.index will provide a number from 0 to the number of loop iterations, will output the loop iteration value for the page element at the current index.

  2. current_value - Typing META.page_elements_loop.current_value will output the loop iteration value for the for the page element at the current index. If this is an object, rather than a string, you can access nested properties.

    For example, the array ["hello", "world"] will display "hello" on the first iteration and "world" on the second. When looping through more complex structures, like an array of objects, you can access specific object properties (such as name or email) within each iteration.

    If your loop array is the following JSON below, then accessing META.page_elements_loop.current_value.name will display Tines.

[
  {
    "name": "Tines",
    "email": "example@tines.io"
  },
  ...
]

Working with looped data output

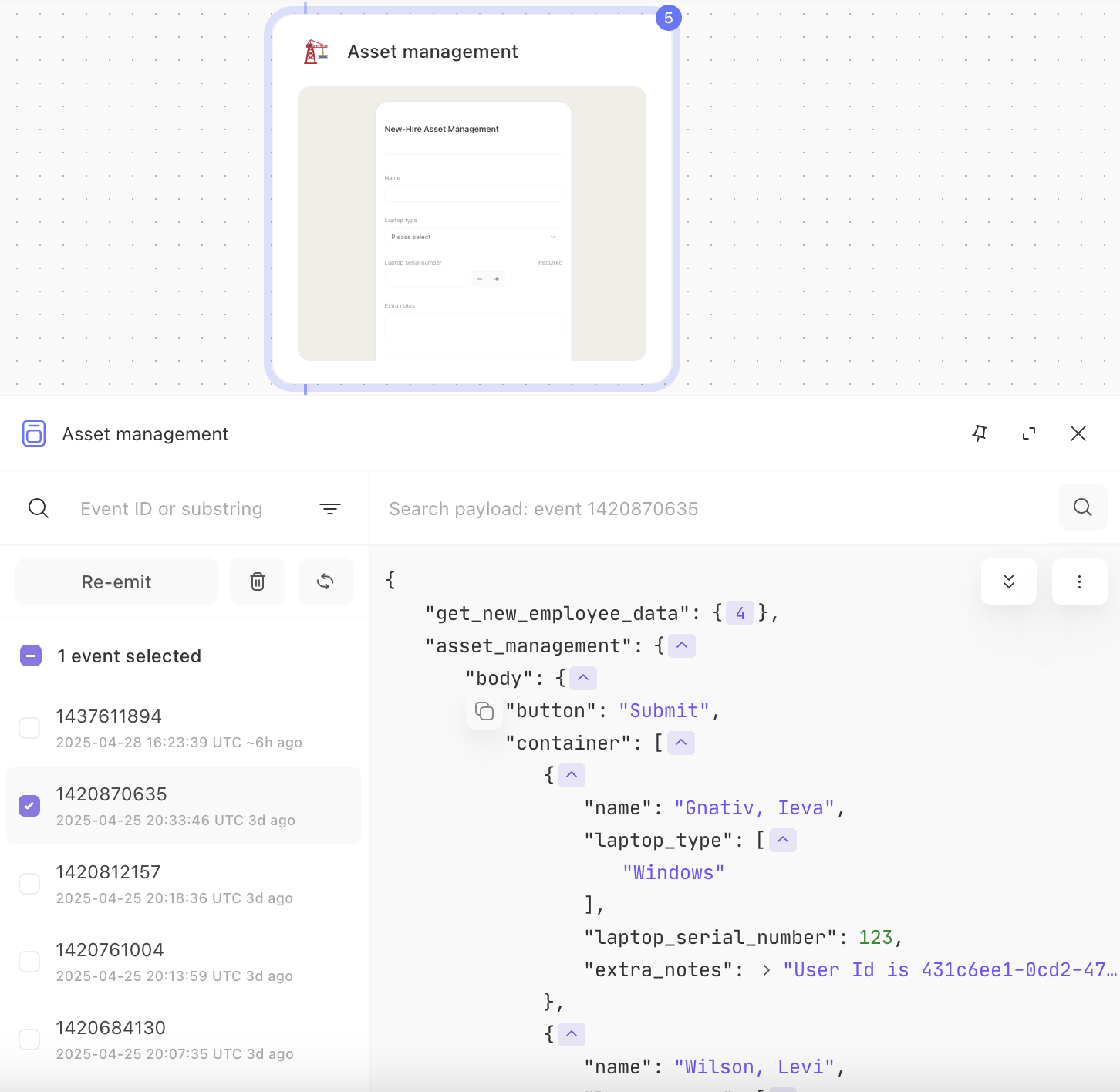

Based on your looping container's name, Tines groups the loop values in the page event's JSON output body as an array. For example, if your looping container is named "Container", it will appear as "container" (lowercased and snaked cased) in the event output payload.

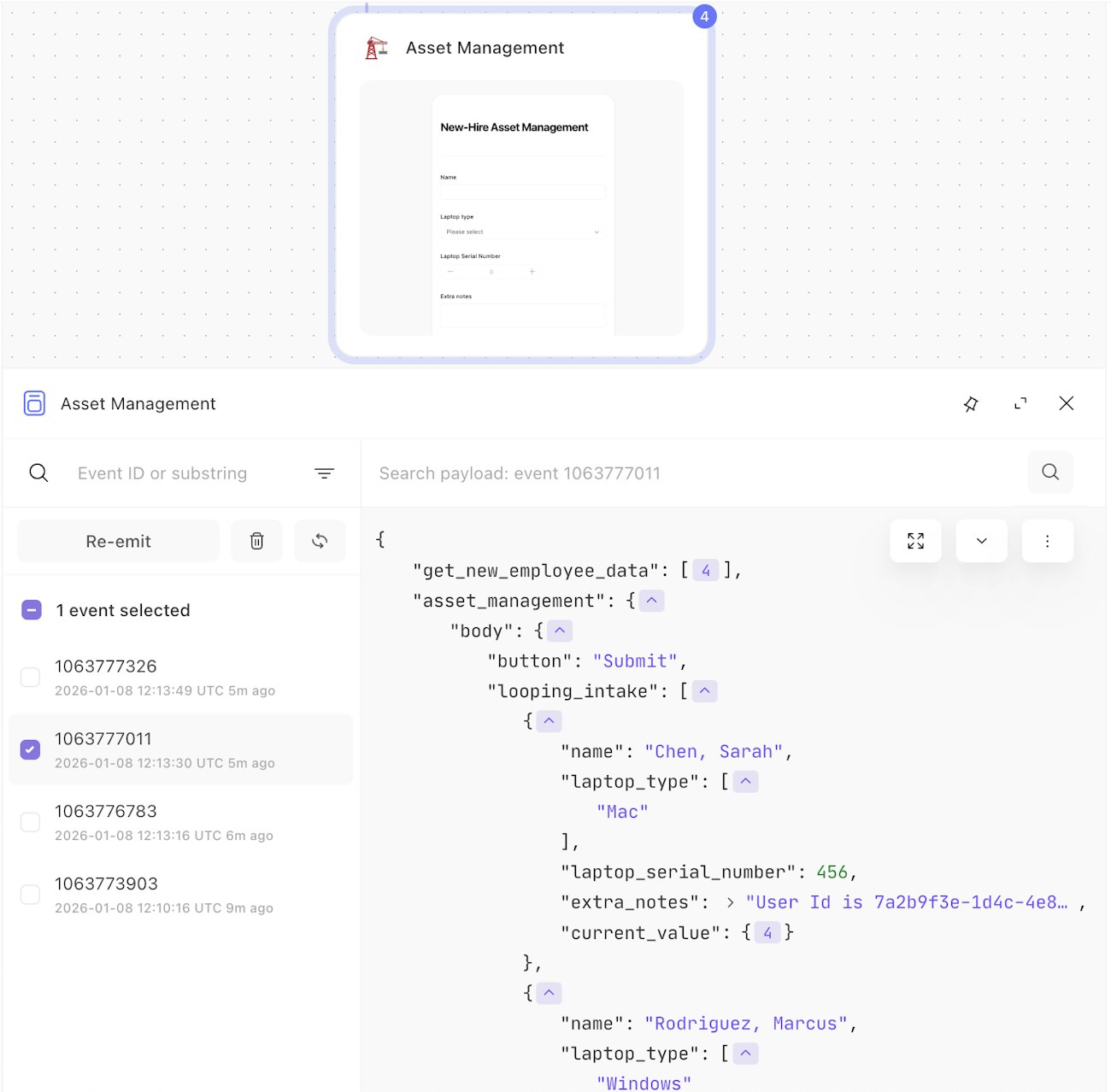

In the example below, we have a looping container named "Looping intake" - you can see that all values from "looping_intake" in the page (called "Asset management") are organized in an array. Non-looping fields remain appended to the root of the JSON output as usual.

Each object in the output array includes the corresponding current_value from the loop iteration, allowing you to correlate inputs with their source data.

In downstream actions, you can process this array using a looping event transform or an exploding event transform, depending on your needs.
