Health Check & Metrics

Tunnel health checks & metrics

Health Check

Health checks are handled internally within the application, to automatically restart the tunnel container in the event it enters an unhealthy state.

You can also run a health check on the tunnel using the following steps if you wish, but this is optional:

Step 1: Exec into the container

docker exec -it <container-id> /bin/sh

Step 2: Run tunnel-cf-healthcheck.sh

/home/tines/tunnel-cf-healthcheck.sh

Metrics

You can view tunnel metrics from inside or outside the docker container via the /metrics endpoint. If you need to override the default port which is 9000 you can run the tunnel container with the env var TUNNEL_METRICS_PORT.

Option 1: run the container via docker-compose.yml and exec into container

version: '3.9'

services:
  tines_tunnel:
    image: tines-tunnel:latest  # Make sure to use the correct image name and tag
    environment:
      TUNNEL_METRICS_PORT: "9000"
      TINES_TUNNEL_SECRET: "secret"
    deploy:
      mode: replicated
      replicas: 2  # Deploy two replicas per host
docker-compose up -d
docker-compose exec tines_tunnel /bin/sh

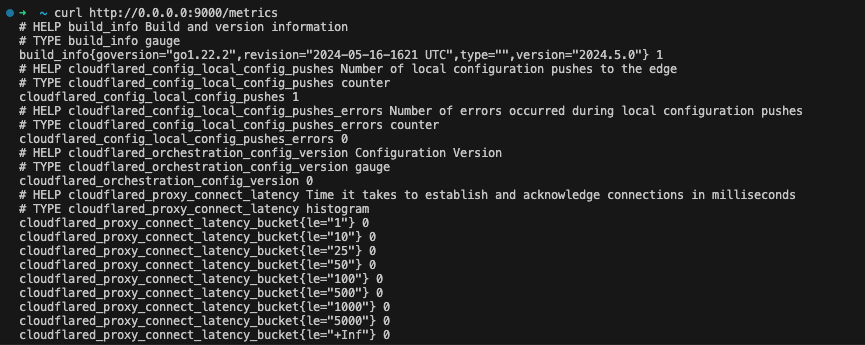

You can use tools such as cURL, wget, or others to fetch the metrics from the tunnel inside of the container.

curl http://0.0.0.0:9000/metrics

Option 2: expose the /metrics endpoint outside the container

The -p option is required to publish the port to the host. This value is needed whether or not you are overriding the TUNNEL_METRICS_PORT e.g -p 0.0.0.0:${TUNNEL_METRICS_PORT}:<container_port>

See docker-compose.yml example

version: '3.9'

services:
  tines_tunnel:
    image: tines-tunnel:latest  # Make sure to use the correct image name and tag
    ports:
      - "9000:9000"  # This maps the container's port 9000 to the host's port 9000
    environment:
      TUNNEL_METRICS_PORT: "9000"
      TINES_TUNNEL_SECRET: "secret"
    healthcheck:
      test: ["CMD", "/home/tines/tunnel-cf-healthcheck.sh"]
      interval: 30s
      timeout: 10s
      retries: 3
    deploy:
      mode: replicated
      replicas: 2  # Deploy two replicas per host

See docker run example

docker run \
  -d \
  --name tines-tunnel \
  --env TUNNEL_METRICS_PORT=9000 \
  --env TINES_TUNNEL_SECRET="YOUR_TUNNEL_SECRET" \
  -p 0.0.0.0:9000:9000 \
  tines/tines-tunnel:latest

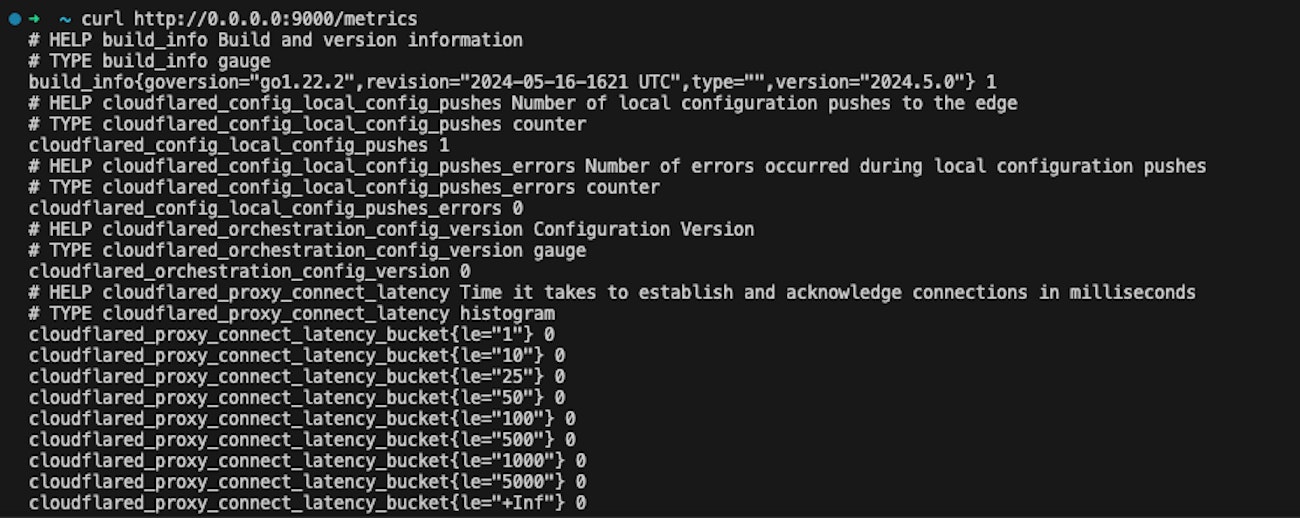

Once the above configuration is in place, you can use tools such as cURL, wget, or others to fetch the metrics from the tunnel outside of the container.

curl http://0.0.0.0:9000/metrics
